VIPA Commander Compact CC 03 - 603-1CC23
Operating & Monitoring
Yaskawa Nederland Line Displays VIPA Commander Compact CC 03 - 603-1CC23
Overzicht

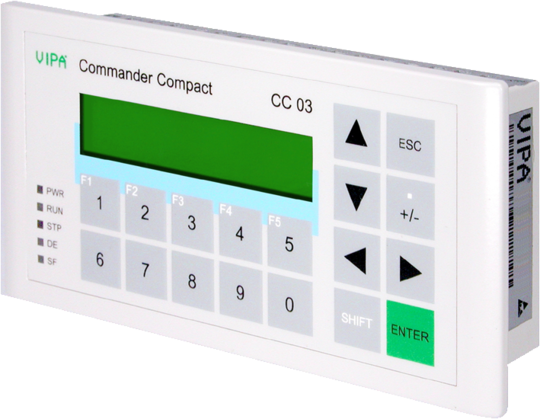

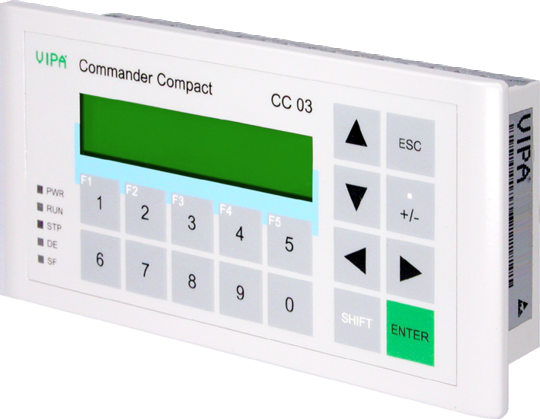

CC 03 – Commander Compact
In the VIPA Commander Compact CC 03 a PLC CPU, programmable with Siemens STEP7, is integrated. Besides the 128 kByte user memory, the CPU has 16/24/32 kByte program and 24/32/40 kByte load memory (depending on version) . In addition, 16 digital inputs and outputs each are integrated. The CC 03 is expandable with up to four 100V or 200V modules (160 digital inputs/outputs, or up to 32 analog inputs/outputs respectively are supported).
Ordernumber: 603-1CC23
- Display: 2 x 20 characters
- Interface: MP²I
- User memory: 128 KB
- Languages: DE, EN, FR, ES, IT, SV, NO, DA
- Project engineering via VIPA OP-Manager or Siemens ProTool
- Integrated PLC-CPU: 32/40 KB work/load memory
- 16x DI, 16x DO
- Up to 4 I/O expansion modules
Technische specificaties
- Display grootte lijn
- 2 x 20
- CPU naam
- PLC CPU
- CPU snelheid
- x Nee
- RAM
- x Nee
- Gebruikersgeheugen
- 128 kB
- Externe aansluiting
- x Nee
- Aanwezige interface
- x Nee
- Besturingssysteem
- x Nee
