Cable Retraction Box

Overzicht

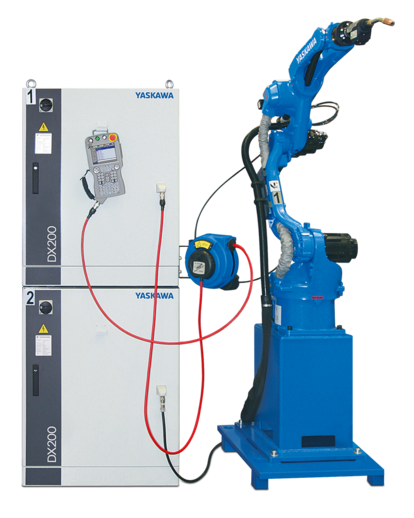

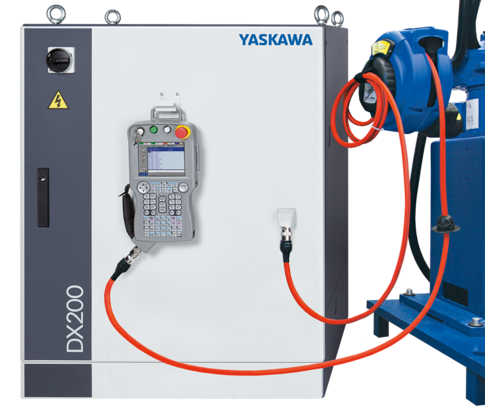

The automatic Yaskawa cable retraction system has been specially developed for the connecting cables of industrial robot teach pendants. This system is used to improve work safety in the production area and is a recognized accident prevention measure.

The stable housing is made of impactresistant plastic, while the mounting bracket is made of steel plate, enabling alignment of
the retraction system housing in the direction in which the cable is pulled out. The cable deflection pulley is fitted with a spring element for cable retraction. Additionally, a releasable cable locking element is integrated at intervals of 50 cm so that the cable can be blocked
if required when being pulled out or retracted. Special connecting cables with high-strength polyurethane sheaths are used; these are highly flexible, flame-retardant and resistant to abrasion, oil and coolant. By being rolled up correctly, the cable is kept clean and damage is prevented.

• Recognized as an accident prevention measure in manufacturing industry (in accordance with the occupational health and safety management system OHSAS 18001:2007, e.g. for the prevention of t
• Stable housing made of impactresistant plastic
• Cable deflection pulley with spring element enabling cable retraction
• Integrated slip ring system
