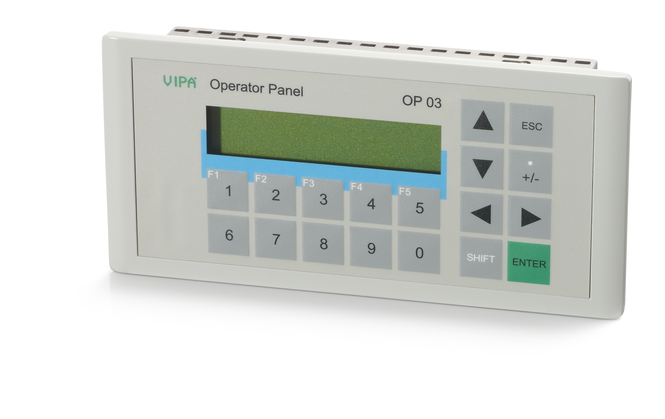

OP 03 – Operator Panel
The VIPA Operator Panel OP 03 is particularly suitable for operating and monitoring of small applications in conjunction with VIPA CPUs 11x, 21x, 31x, 51x and Siemens S7-300/400 CPUs. Up to seven OPs can be connected to a CPU and up 2 CPUs to an OP 03 via the MPI interface. For managing and processing operating notifications and data, 256 kByte user memory is available. Project planning is carried out with VIPA OP-Manager or Siemens ProTool.
Ordernumber: 603-1OP00
- Display: 2 x 20 characters
- Interface: MP²I
- User memory: 256 KB
- Languages: DE, EN, FR, ES, IT, SV, NO, DA
- Project engineering via VIPA OP-Manager or Siemens ProTool
Technische specificaties
- Display grootte lijn
- 2 x 20
- CPU naam
- PLC CPU
- CPU snelheid
- x Nee
- RAM
- x Nee
- Gebruikersgeheugen
- 256 kB
- Externe aansluiting
- x Nee
- Aanwezige interface
- x Nee
- Besturingssysteem
- x Nee
